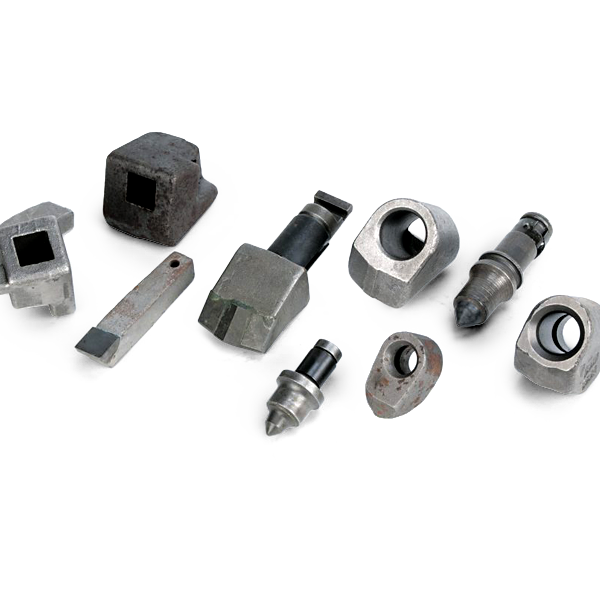

Auger Cutterhead Components

Description

Blade Cutterhead Components

DescriptionPart #Weight (lbs.)
C011 Carbide-Tipped Blade CutterC0110
C012 Blade Cutter BoltC0120
SizeC011 Blade CuttersC012 Blade Cutter Bolts
3 1/4″ (83mm)22
3 3/4″ (95mm)33
4 1/4″ (108mm)33
6 1/4″ (159mm)44
6 5/8″ (168mm)44
7 1/4″ (184mm)55
8 1/4″ (210mm)55
10 1/4″ (260mm)66
12 1/4″ (311mm)77

Spade Cutterhead Components

DescriptionPart #Weight (lbs.)
C87L Carbide-Tipped Spade CutterC87L0
C87B Spade Cutter Holding BlockC87B0
SizeC87L Spade CuttersC87B Spade Blocks
2 1/4″ (57mm)22
3 1/4″ (82mm)33
3 3/4″ (95mm)44
4 1/4″ (108mm)44
6 1/4″ (159mm)55
6 5/8″ (168mm)55
7 1/4″ (184mm)55
8 1/4″ (210mm)55
10 1/4″ (260mm)88
12 1/4″ (311mm)1010

Blade/Bullet Cutterhead Components

DescriptionPart #Weight (lbs.)
C011 Carbide-Tipped Blade CutterC0110
C012 Blade Cutter BoltC0120
C23 Carbide-Tipped Bullet CutterC230
C20B Bullet Cutter Holding BlockC20B0
SizeC011 Blade CuttersC012 Blade Cutter BoltsC23 Bullet CuttersC20B Bullet Blocks
3 1/4″ (83mm)2222
3 3/4″ (95mm)3333
4 1/4″ (108mm)3333
6 1/4″ (159mm)4444
6 5/8″ (168mm)4444
7 1/4″ (184mm)5555
8 1/4″ (210mm)5555
10 1/4″ (260mm)6666
12 1/4″ (311mm)7777

Spade/Bullet Cutterhead Components

DescriptionPart #Weight (lbs.)
C23 Carbide-Tipped Bullet CutterC230
C20B Bullet Cutter Holding BlockC20B0
C87L Carbide-Tipped Spade CutterC87L0
C87B Spade Cutter Holding BlockC87B0
SizeC87L Spade CuttersC87B Spade BlocksC23 Bullet CuttersC20B Bullet Blocks
2 1/4″ (57mm)2222
3 1/4″ (95mm)2222
3 3/4″ (95mm)3333
4 1/4″ (108mm)3333
6 1/4″ (159mm)4444
6 5/8″ (168mm)4444
7 1/4″ (184mm)4444
8 1/4″ (210mm)4444
10 1/4″ (260mm)5555
12 1/4″ (311mm)6666

Bullet Cutterhead Components

DescriptionPart #Weight (lbs.)
C23 Carbide-Tipped Bullet CutterC230
C20B Bullet Cutter Holding BlockC20B0
SizeC23 Bullet CuttersC20B Bullet Blocks
2 1/4″ (57mm)44
3 1/4″ (95mm)44
3 3/4″ (95mm)66
4 1/4″ (108mm)66
6 1/4″ (159mm)88
6 5/8″ (168mm)88
7 1/4″ (184mm)1010
8 1/4″ (210mm)1010
10 1/4″ (260mm)1010
12 1/4″ (311mm)1212

5-T Cutterhead Components

DescriptionPart #Weight (lbs.)
5-T Carbide-Tipped CutterC5T0
5-T Cutter Holding BlockC5TB0
5-T Cutter Flighted Holding BlockC5TBP0
Size5-T Cutters5-T Cutter Blocks5-T Flighted Blocks
2 1/4″ (57mm)422
3 1/4″ (83mm)422
3 3/4″ (95mm)422
4 1/4″ (108mm)422
6 1/4″ (159mm)844
6 5/8″ (168mm)844
